LEOSMAK·SKU LEO030L·COMMERCIAL

LEO-030L

Up to 45 kg per batch · 13 shelves · -35 to +70 °C

Up to 45 kg per batch on 26 GN 1/1 trays, 5.15 m² of shelf area. Same footprint as the LEO-030 with 13 shelves instead of 8, fully automatic, with Wi-Fi monitoring and touchscreen control.

Authorised distributor ofLeosmak
List price · indicative
€48,880
EX-VAT · CONFIGURATION-DEPENDENT
SKU LEO030L
Vacuum pumpOil-sealed pump
Request a quote
Capacity
45 kg/batch
Shelf area
5.15 m²
Shelves
13
Shelf temp
-35 to +70 °C
Condenser
70 kg (total ice)

Year-end offer: trays included with every Leosmak machine

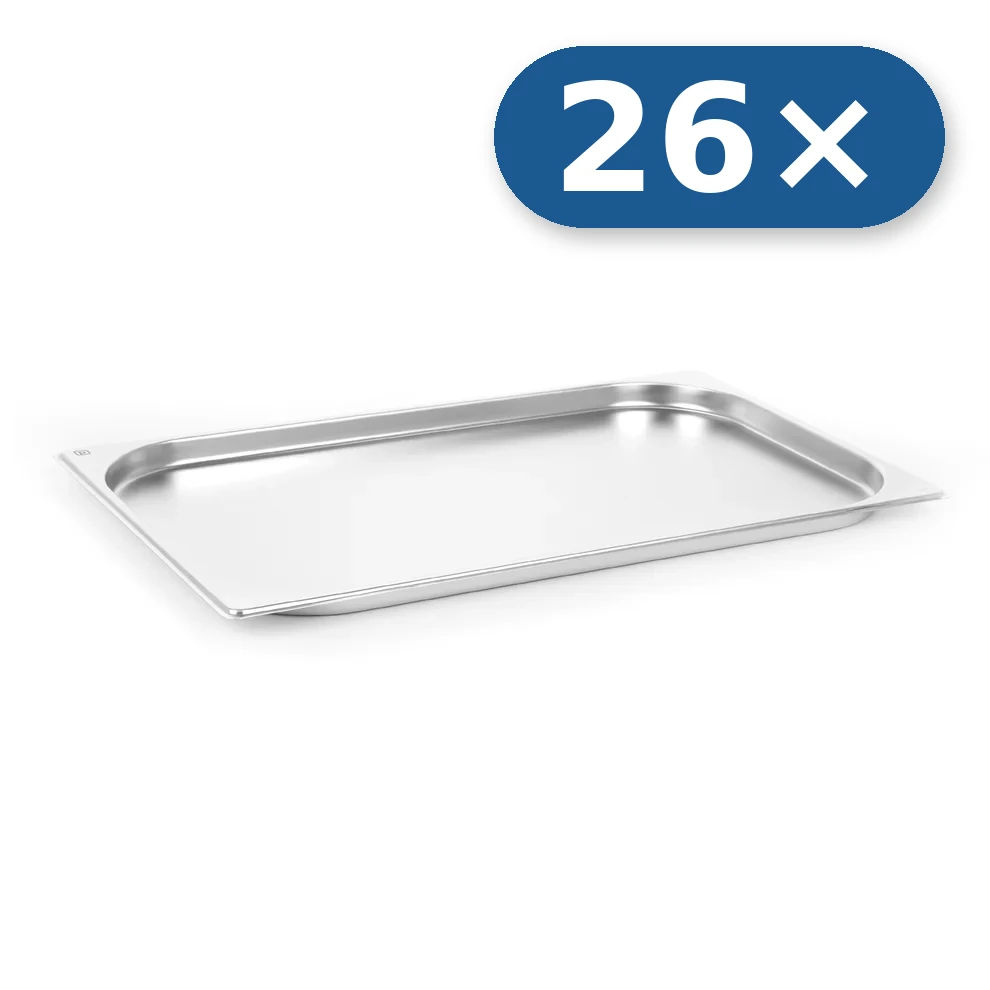

Leosmak freeze-dryers ship without trays. Order any Leosmak machine by 31 December 2026 and we include its full set of 20 mm stainless steel GN trays.

For the LEO-030L: 26 GN 1/1 trays.

Conditions: Valid for Leosmak freeze-dryer orders whose deposit (or full payment) we receive by 31 December 2026. One full set of 20 mm trays per machine, as listed for each model. Combinable with the LEO-030L + Blueberry Piercer bundle. Not exchangeable for cash or other accessories; not combinable with other offers.

Request a quote

Until 31 January 2027: LEO-030L + Blueberry Piercer with free delivery. See the bundle →

Overview

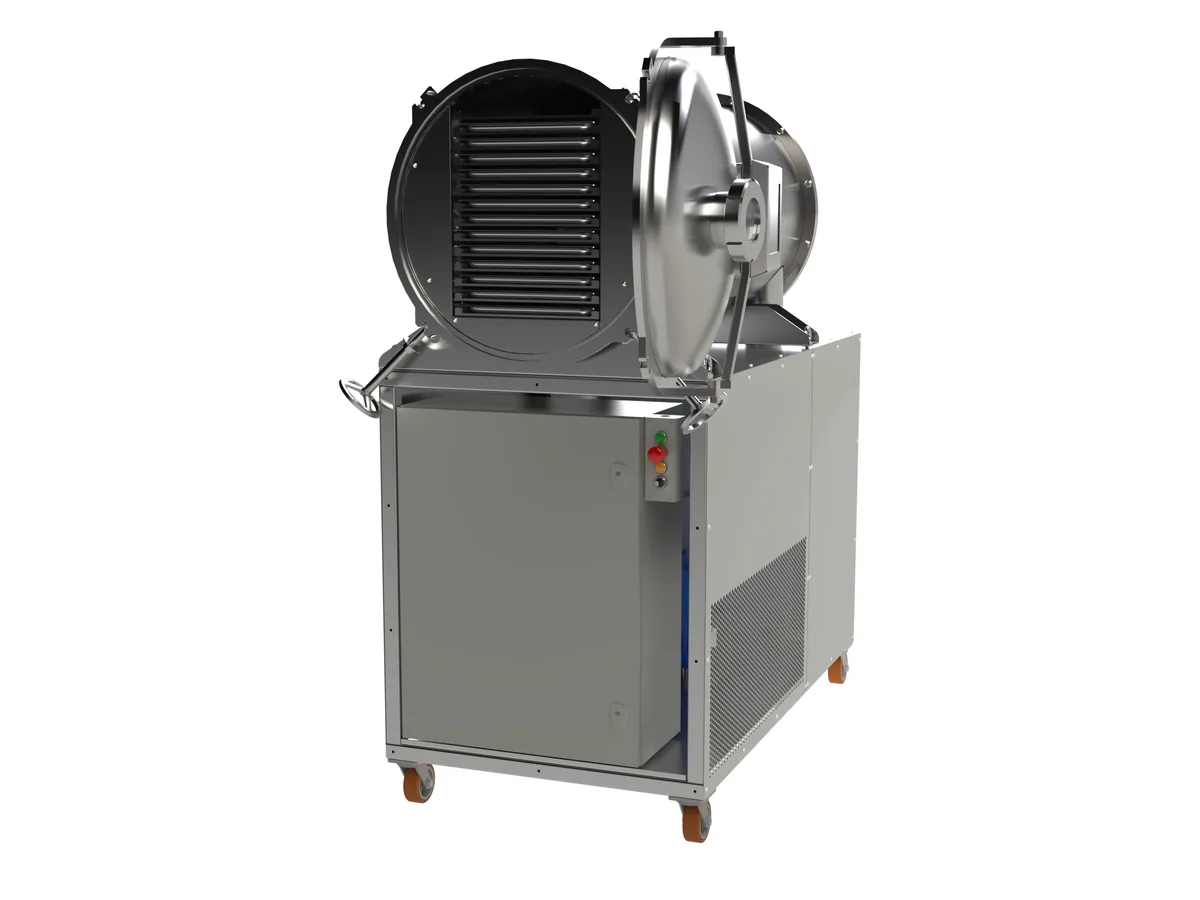

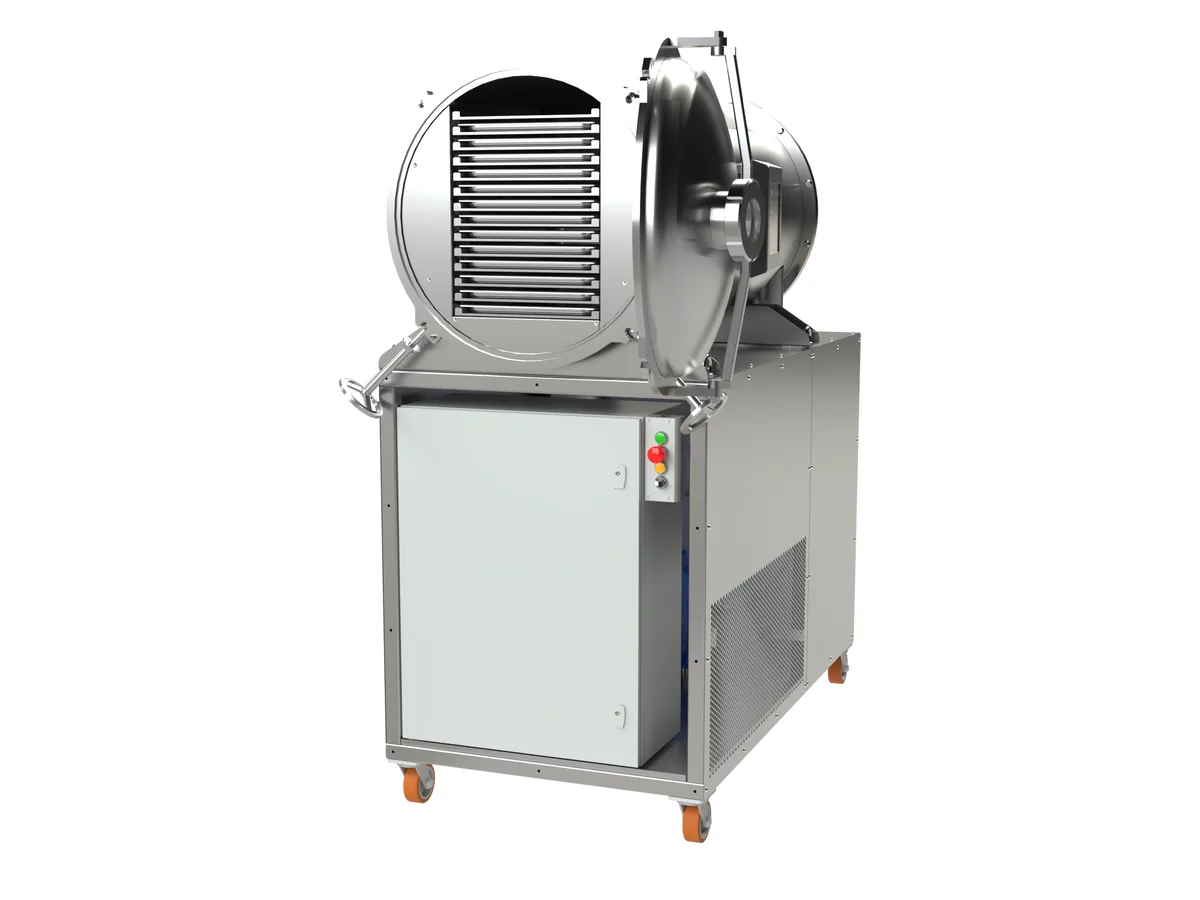

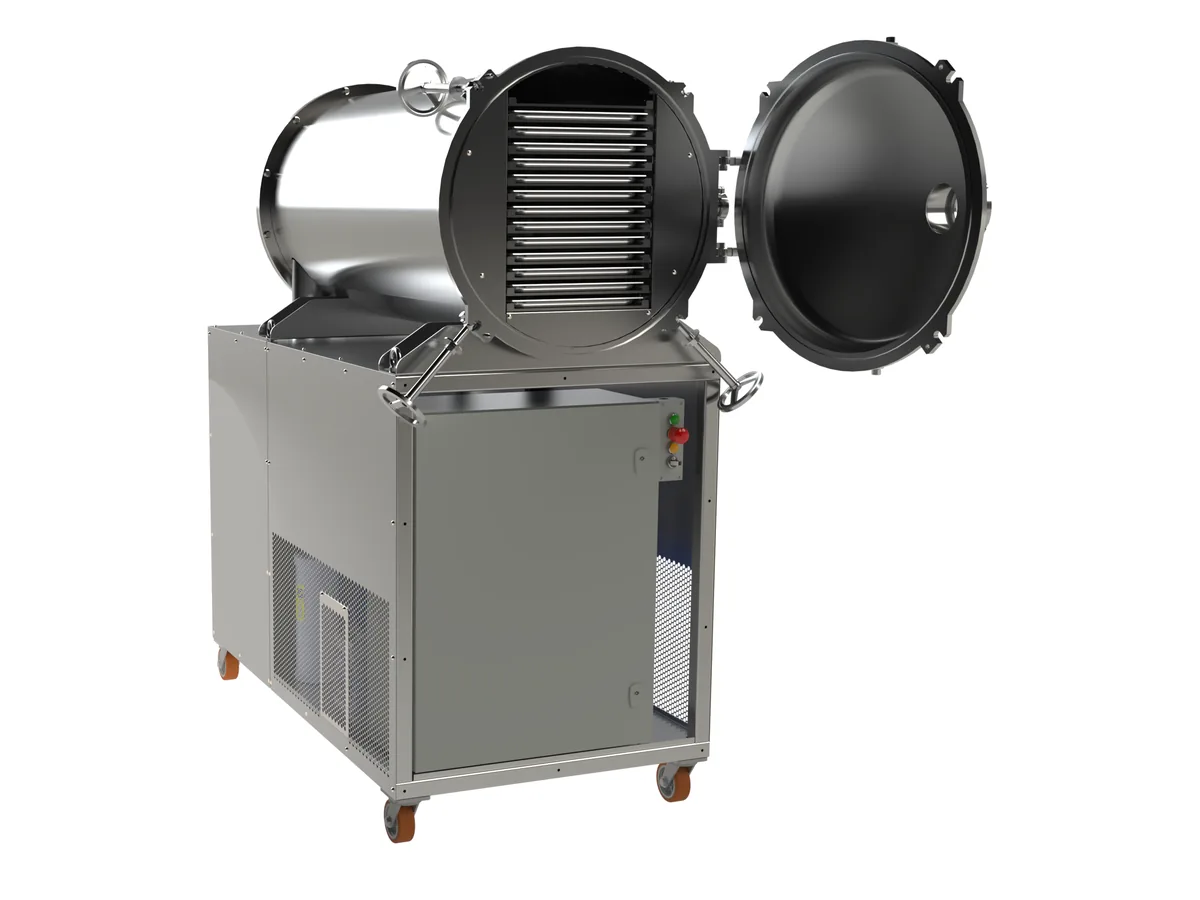

About the LEO-030L

The ideal solution for food producers and businesses seeking high-capacity freeze-drying with a batch capacity of up to 45 kg.

Commercial production, more per cycle — more shelves in the same footprint for higher-throughput lines.
Up to 45 kg per batch — 13 shelves, 26 trays, 5.15 m² of shelf area.
Freezes in the chamber, scales up — radiant freezing and drying with no blast freezer. Recipes carry over to the industrial LEO units.
Connected and washable — touchscreen, Wi-Fi monitoring, notifications and OTA updates. Stainless steel throughout, fully washable.
Key features & benefits

Hygienic & Durable Design

  • 100% Stainless Steel Chamber & Shelves — Fully washable with no electrical components inside for safe and easy cleaning.
  • Premium Construction — Built for long-term reliability in demanding environments.
  • Short defrost time — now equipped with fast defrost time – fully defrosted in less than 1 hour

Integrated & User-Friendly Operation

  • "All-in-One" Design — Premium vacuum pump included – no external installation required.
  • Fully Automatic Process — Load, start, and let the machine handle freezing, drying, and defrosting automatically.
  • Delayed Start Feature — Schedule cycles to start at a convenient time.

Advanced Freeze-Drying Technology

  • Radiant Freezing & Heating Shelves — Ensures faster, more even drying with efficient heat transfer.
  • Increased Shelf Count — 13 Shelves – Maximizes drying capacity with more shelves in the same footprint.
  • 28 mm Clearance — Ideal for GN 1/1 trays with 20 mm depth, optimizing space usage.
  • "Sweet Mode" — Specialized drying for sweets and candies, with preheating up to +70°C.

Smart, Remote-Controlled Operation

  • Wi-Fi Connectivity — Monitor and control the machine remotely via a mobile app.
  • Remote Firmware Updates — Always stay up-to-date with the latest software enhancements.

Energy Efficiency & Sustainability

  • Eco-Friendly Refrigerants — Low Global Warming Potential (GWP) refrigerants for a smaller environmental impact.
  • Energy-Efficient Operation — Optimized power consumption to reduce operating costs.

Built for Reliability & Ease of Maintenance

  • Limited Oil Change Technology — Less maintenance, more productivity.
  • Short Power Loss Protection — Automatic recovery after brief outages to save batches.
  • Low Noise (~65 dB) — Quiet operation for a more comfortable workspace.
Specifications

Engineering data, in plain text.

Batch capacity
45 kg
Ice condenser capacity
70 kg
Total shelf area
5.15 m²
Shelf size
365 × 1085 mm
Shelf spacing
28 mm
Heated shelves
13
Product trays
26
Tray size
GN 1/1, 2 cm
Shelf temperature range
-35 to +70 °C
Min. condenser temperature
-45 °C
Vacuum pump type
Oil-sealed (oil-free option)
Defrosting
Automatic, Fast Defreeze (standard)
Control system
LCD touchscreen + Wi-Fi — menu in English
Data logging & recipes
Cloud admin panel: full cycle history, charts and data export · Wi-Fi app monitoring and notifications
Remote monitoring
Yes
Refrigeration
Air-cooled
Chamber / shelf material
AISI 304 stainless steel
Observation
Observation window
Loading
Manual, cart possible
External dimensions
800 × 1,850 × 1,800 mm
Net weight
657 kg
Max. noise level
65 dB(A) max. (DIN 45635)
IP protection
IP65 (DIN 60529)
Connected load
7.5 kW
Nominal power
4 kW
Energy consumption
2.4 kWh/h
Warranty
24 months (+12 extendable)
Refrigerant
R-452B
Shelf material
Stainless steel
Body color options
Stainless steel
Power supply
400 V / 3~ / 50 Hz (230 V single-phase on request)
Defrost time
≈60 min (depends on ice load)
Sweets mode
Yes, vacuum-drying mode for confectionery
Download spec sheet (PDF)
Run the numbers

Produce from €55.22/kg on the LEO-030L.

Indicative cost to produce one kilo of finished freeze-dried product. Adjust the inputs to your operation. Every number recomputes live.

Product
Drives yield & cycle time
Cycles per month
Implied uptime 61%
16
Electricity · €/kWh
All-in industrial rate
0.18 €
Amortise capex over
Equipment life
5 yr
Raw material · €/kg fresh
Market reference: €4.06. Adjust to your sourcing.
€/kg
Selling price · €/kg dried
Your price: drives payback
B2C retail prices exclude your packaging, branding, distribution and retail margin, which this tool does not model.
Cost to produce
€55.22/kg
indicative · Leosmak · incl. raw material, excl. labour
€16.33/kg machine cost · excludes raw material & labour
Payback
7 mo
on capex, gross margin
Revenue / yr
€116,640
~778 kg dried/yr
Full cycle
24–36h
drying + in-shelf freeze

In-shelf freezing: no external blast freezer, and a shorter cycle than in-chamber machines.

Not sure which machine? Size it →

Excludes labour: cycles run largely unattended; hands-on handling is typically a few minutes per batch with trolleys/mechanisation. Add your own loaded rate if it’s material to your setup.

Yield and cycle-time figures are conservative engineering estimates based on typical product composition and verified machine specifications. Actual results depend on the specific material, recipe, preparation, load and ambient conditions, and may differ. These figures are for planning purposes only; Freeze-drying.tech accepts no responsibility for decisions made on their basis. Freeze-drying.tech can run a validation cycle of your product on the target machine to provide confirmed, measured yield and cycle-time figures.

Service & warranty

Backed after the sale.

Warranty
24 months
+12 months available
Support
Email and remote diagnostic support during business hours, with access to the spare-parts catalogue and the full documentation library. Extended and on-site service plans are available on request.
Installation & commissioning
Delivered ready to commission on a three-phase supply. Remote onboarding and recipe-setup guidance are included; on-site commissioning is available on request.
FAQ

Questions buyers ask.

The LEO-030L freeze-dries up to 45 kg of fresh product per batch across 13 shelves / 26 GN 1/1 trays (5.15 m² shelf area, 70 kg ice-condenser capacity). Running back-to-back 24–40 h cycles, that scales to hundreds of kilos of fresh input per week — the step from 'side line' to a real freeze-dried production line.

Yes. It runs fully automatic cycles with automatic defrost, and Wi-Fi remote monitoring lets you oversee the run and machine status from an app. For a producer that means one operator can load, start and walk away, checking progress remotely — important for long overnight cycles.

It needs a three-phase 400 V / 50 Hz supply (≈7.5 kW connected; a 230 V option exists). It's air-cooled, so no chiller is required, but it is a heavy floor-standing machine — plan the floor space, access route and ventilation. We confirm the full installation checklist with the quote.

A 24-month warranty, extendable to 36 months, with remote diagnostics over Wi-Fi to speed up support. As a machine supplied by Freeze-drying.tech you also get spare-parts access and process help — not just a box on a pallet.

No. The LEO-030L freezes the product on its own shelves, which cool to −35 °C. Loaded in a single layer on GN trays, each piece freezes quickly and separately, much as it would in an IQF or shock freezer, so the machine freezes and dries in one cycle. Pre-freezing is optional: product that goes in already frozen (we supply Foster blast freezers) shortens the cycle and lets you start the next batch sooner.

It ships oil-sealed as standard; an oil-free pump is available as an option. Oil-free removes routine oil changes and oil-mist housekeeping in a food room, so weigh the higher up-front cost against lower maintenance over a multi-shift schedule.
