Capacity
4 kg/batch
Overview
About the LEO-004
The LEO-004 offers small-batch freeze-drying capabilities with professional-grade technology, making it an excellent choice for households, restaurants, and businesses prototyping recipes for larger-scale machines.
Households, restaurants & prototyping — the entry into the LEO ecosystem — refine recipes here, then scale them straight up to larger LEO machines.
Up to 4 kg per batch — small-batch prototyping and R&D.
Freezes in the chamber, recipes scale up — radiant freezing and heating shelves — no separate blast freezer — and the same recipe logic runs on every larger LEO, so what you prototype here scales straight up.
Reliable, professional build — engineered for durability and consistent results, a step above typical entry-level machines.
Key features & benefits
Hygienic & Compact Design
- 100% Stainless Steel Chamber & Shelves — Corrosion-resistant and easy to clean for long-term use.
- No Electrical Components Inside the chamber — Safe and easy to wash, ensuring high hygiene standards.
Simple, User-Friendly Operation
- "All-in-One" Unit — Integrated premium vacuum pump for quick plug-and-play setup.
- Fully Automatic Process — Start-to-finish automation reduces manual work.
- Delayed Start Feature — Plan and schedule drying cycles at your convenience.
Advanced Freeze-Drying Technology
- Radiant Freezing & Heating Shelves — Provides fast, even drying for consistent product quality.
- 50 mm Shelf Clearance — Compatible with GN 1/2 trays (20 or 40 mm deep) for flexible batch sizes.
- "Sweet Mode" — Special setting for sweets and snacks, with preheating up to +70°C.
Remote Control & Monitoring
- Wi-Fi Connectivity — Full remote control via a mobile app.
- Remote Firmware Updates — Stay up-to-date with automatic performance improvements.
Energy Efficiency & Sustainability
- Eco-Friendly Refrigerants — Low Global Warming Potential (GWP) technology for sustainable operation.
- Energy-Efficient Design — Consumes just 0.9 kWh/hour, minimizing energy costs.
Built for Reliable Performance
- Advanced Vacuum Oil Protection Technology — Extends vacuum pump oil life, reducing maintenance needs.
- Short Power Loss Protection — Recovers cycles automatically after brief outages.
- Low Noise (~60 dB) — Quiet operation, suitable for kitchens, homes, or labs.
Specifications
Engineering data, in plain text.
Batch capacity (fresh load)
4 kg/batch
Ice condenser capacity
6 kg (total ice)
Total shelf area
0.34 m²
Number of shelves
4 count
Number of trays
4 count
Tray size
GN 1/2, 2–4 cm
Shelf temperature range
-40 to +70 °C
Min. condenser temperature
-40 °C
Vacuum pump type
Oil-sealed (oil-free option)
Refrigeration type
Air-cooled
Refrigerant
R-452B
Chamber material
AISI 304 stainless steel
Shelf material
Stainless steel
Body color options

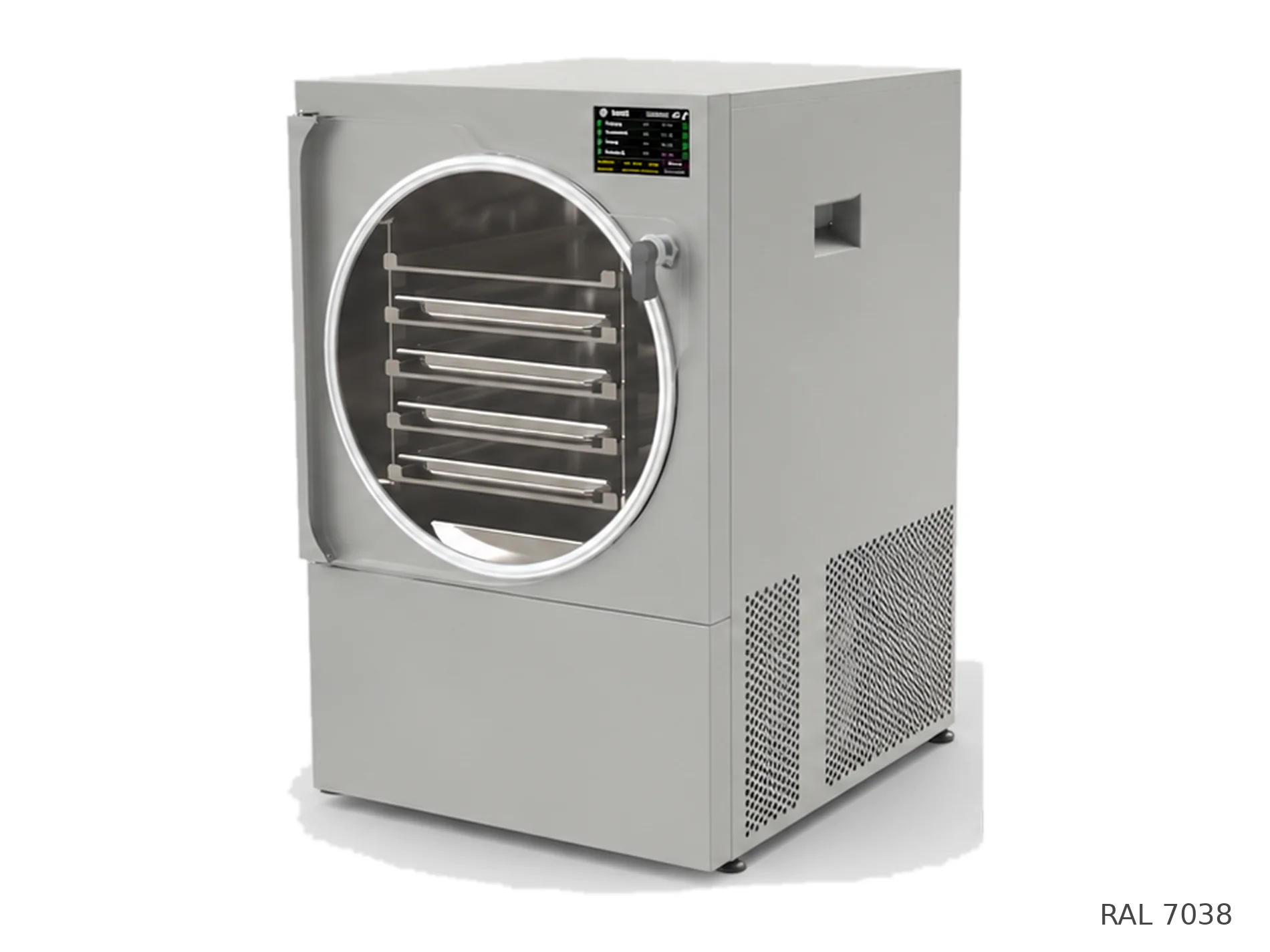

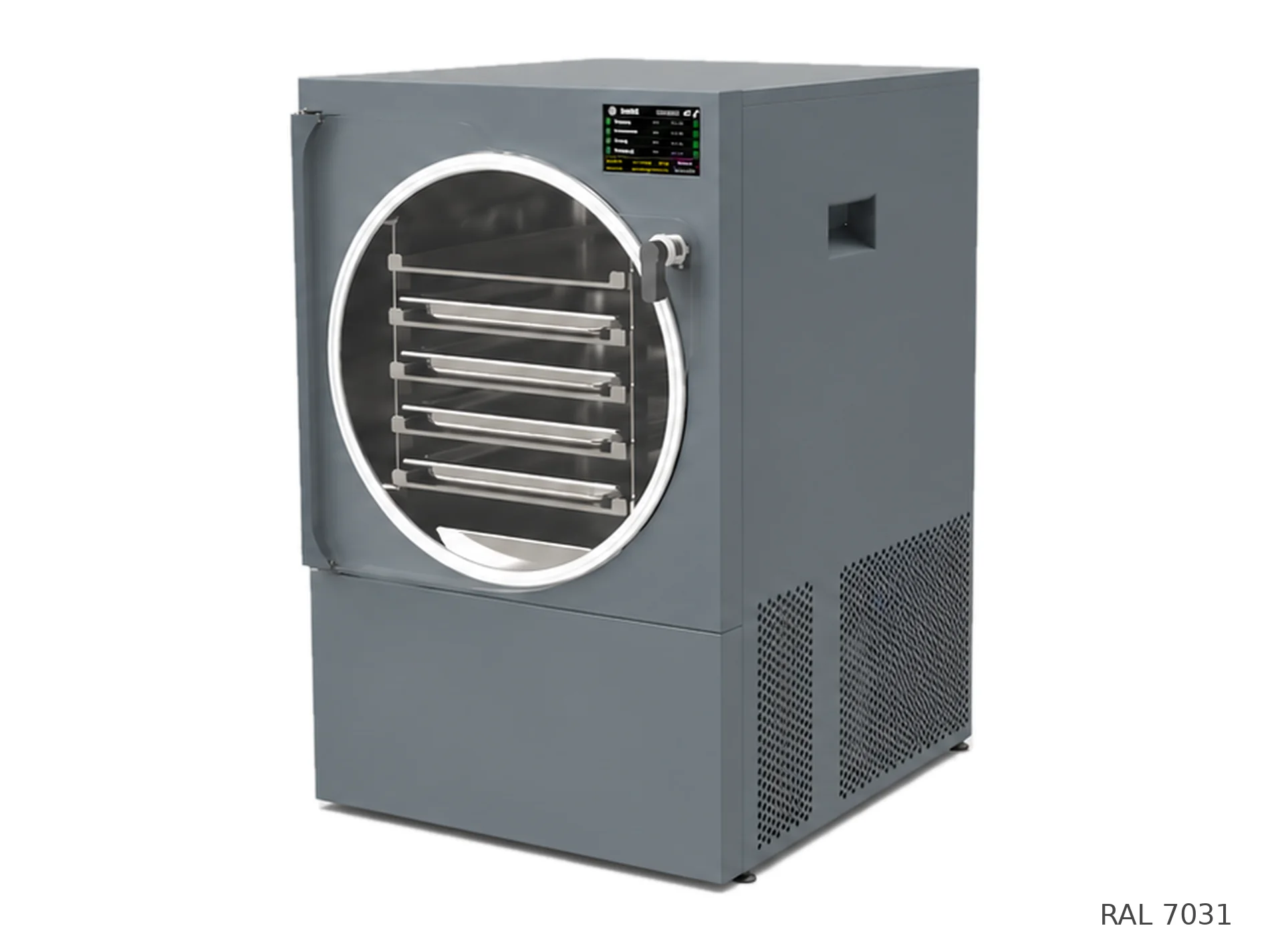

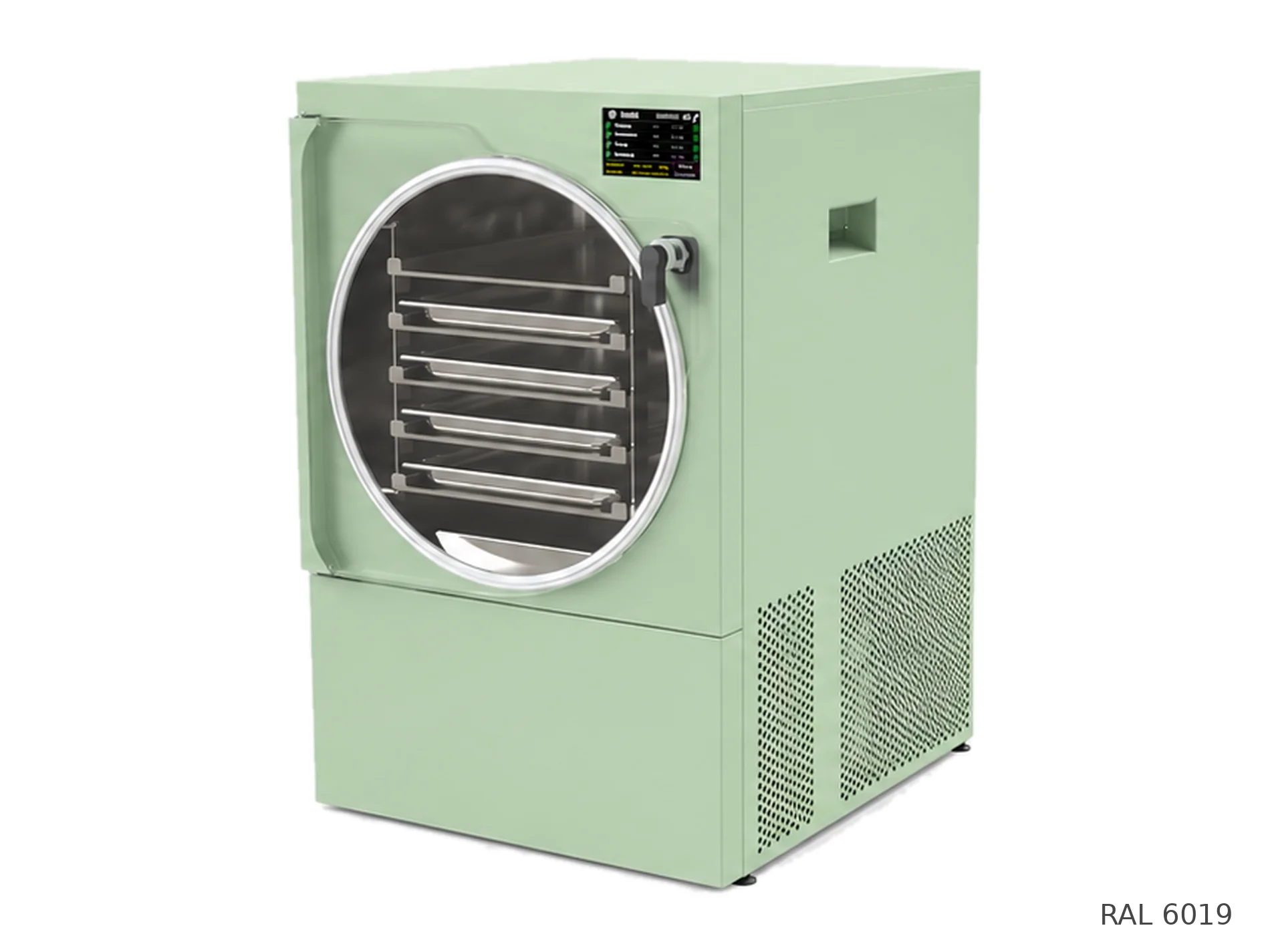

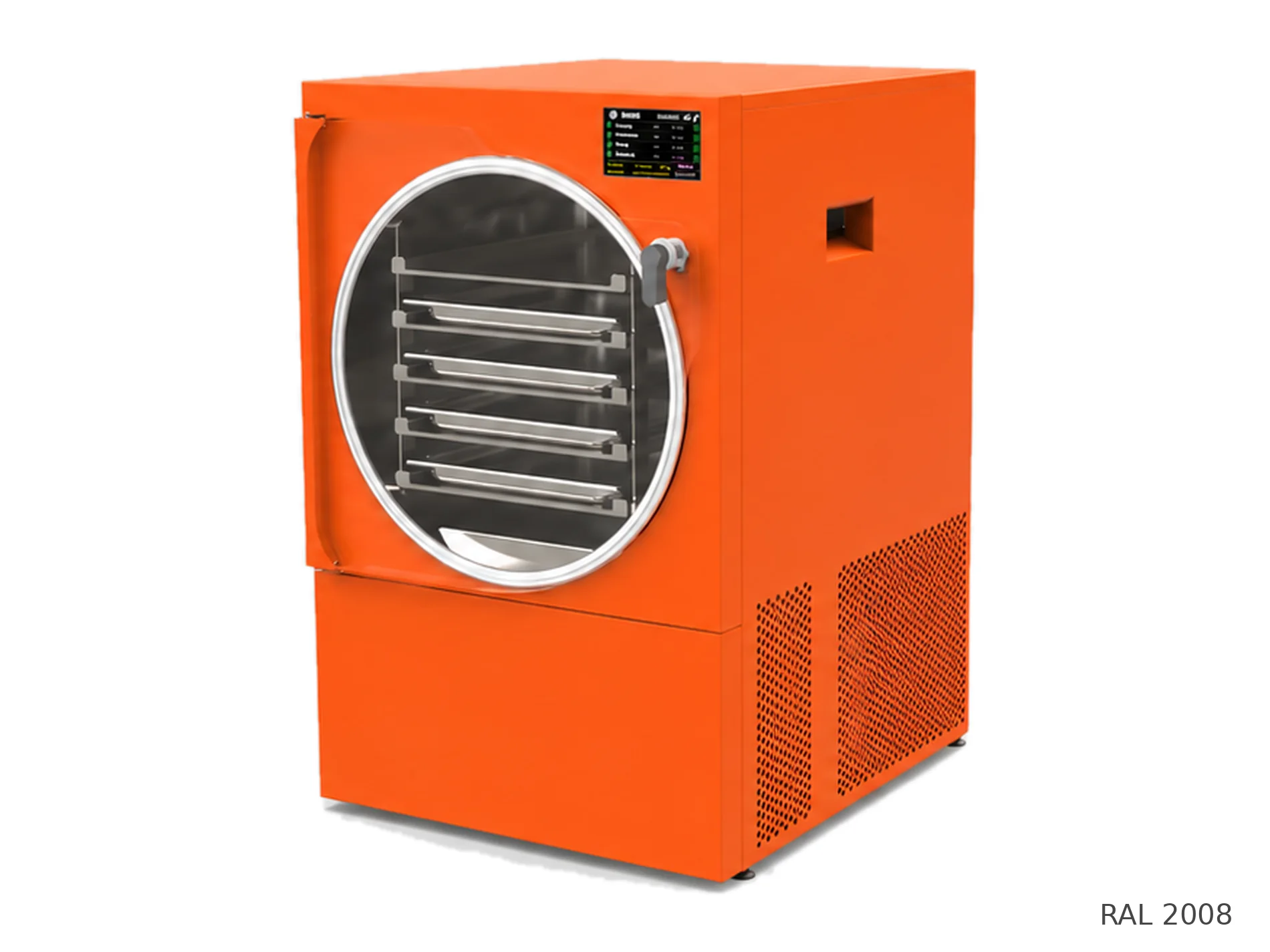

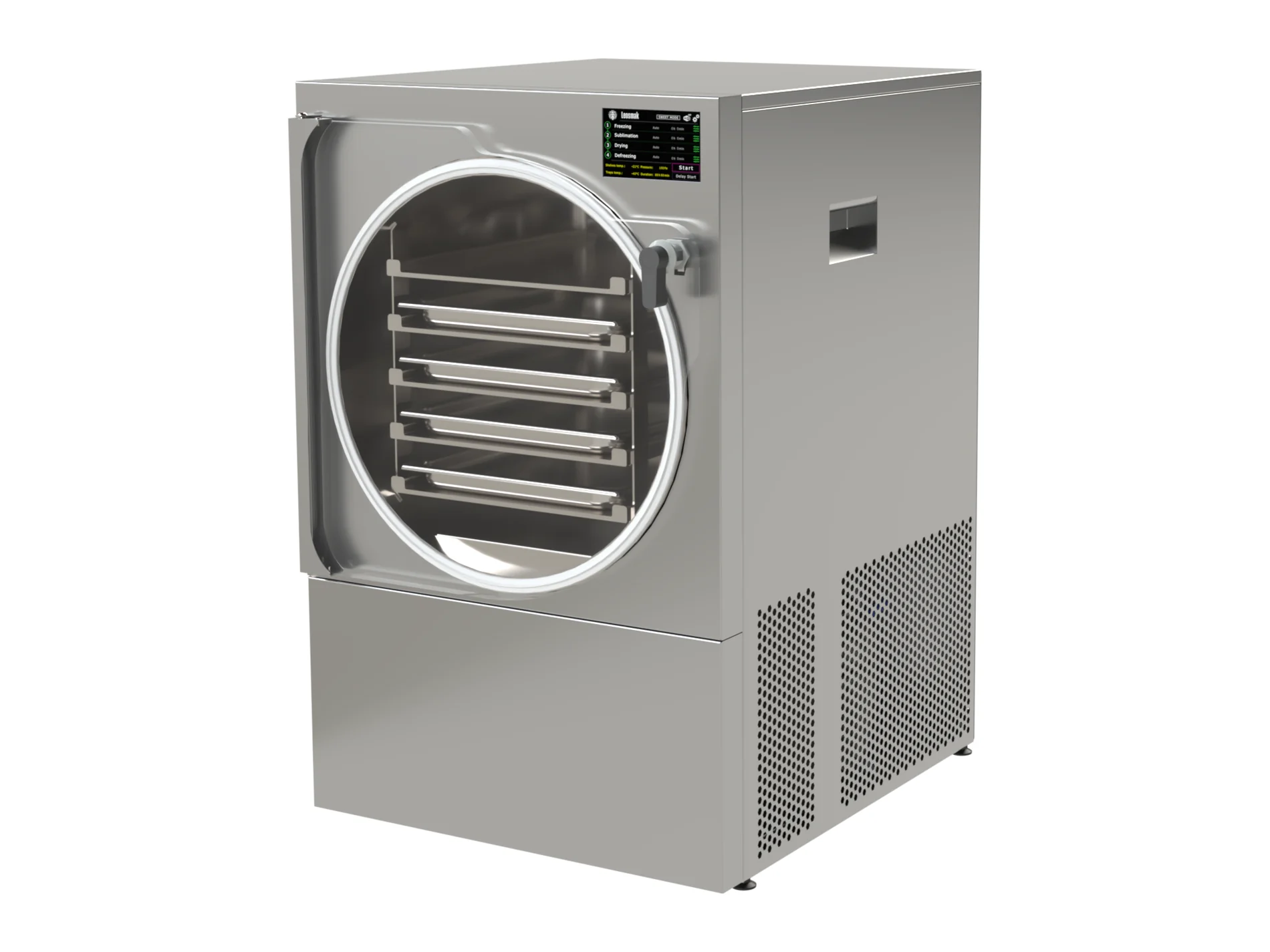

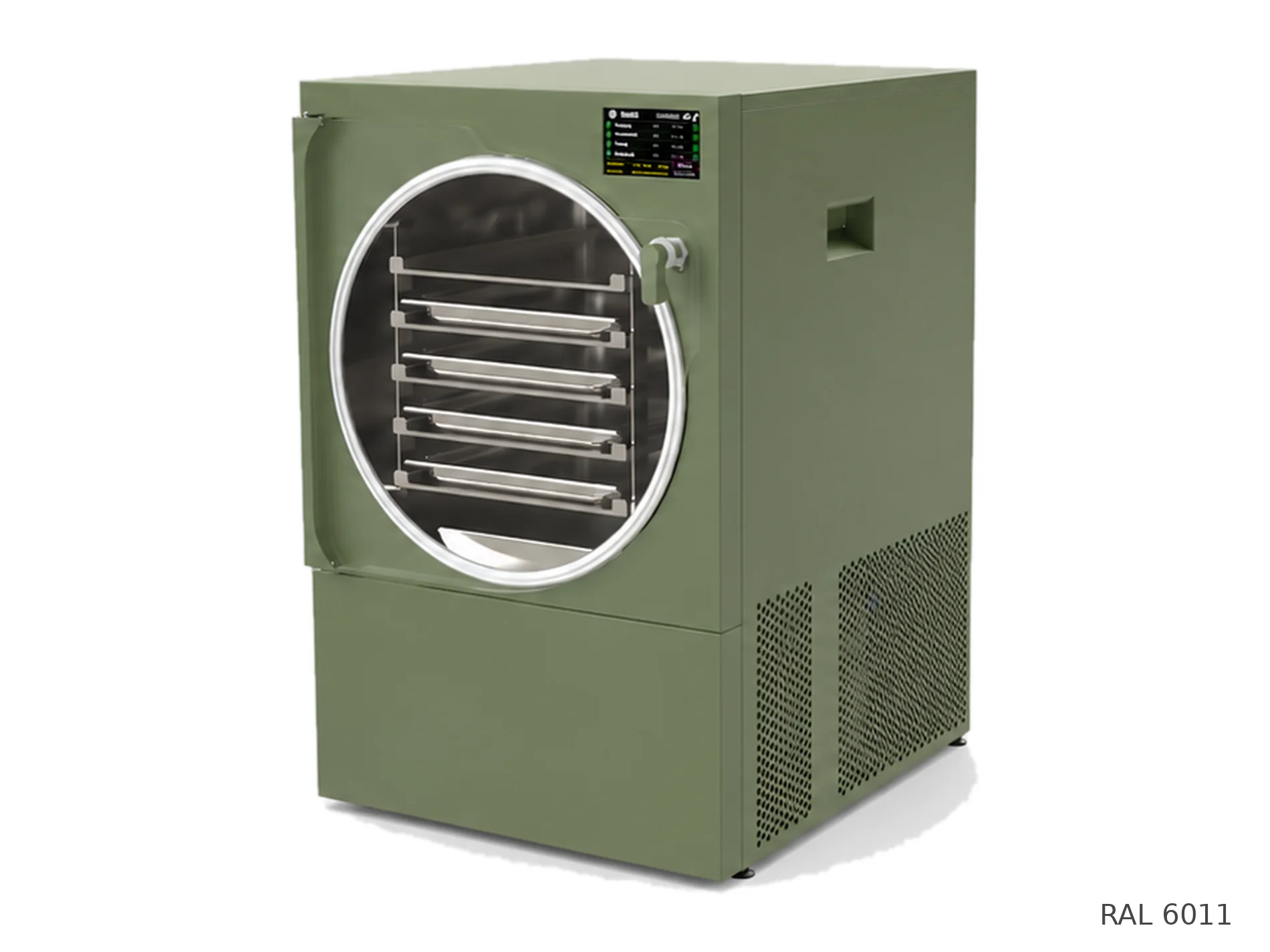

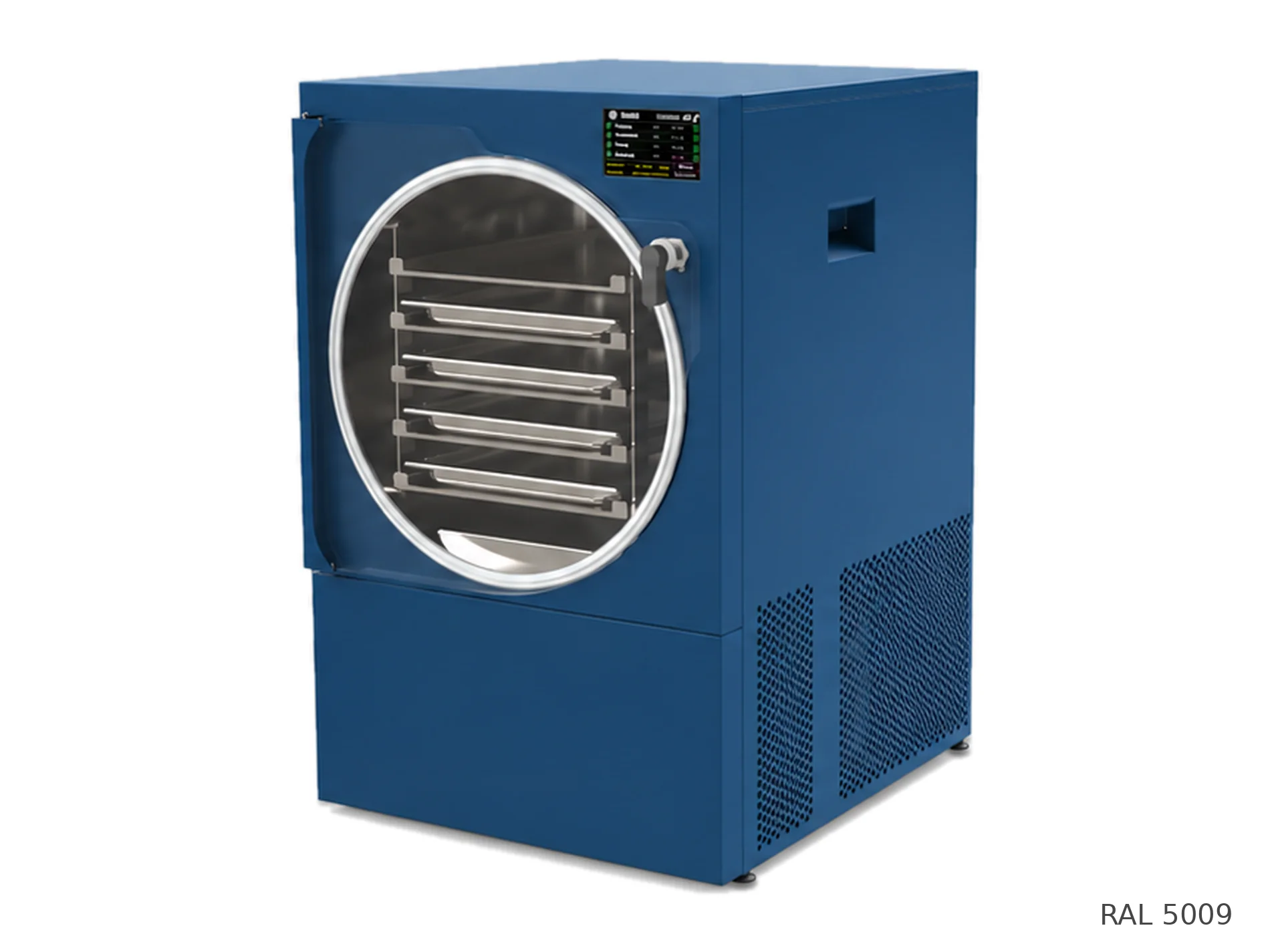

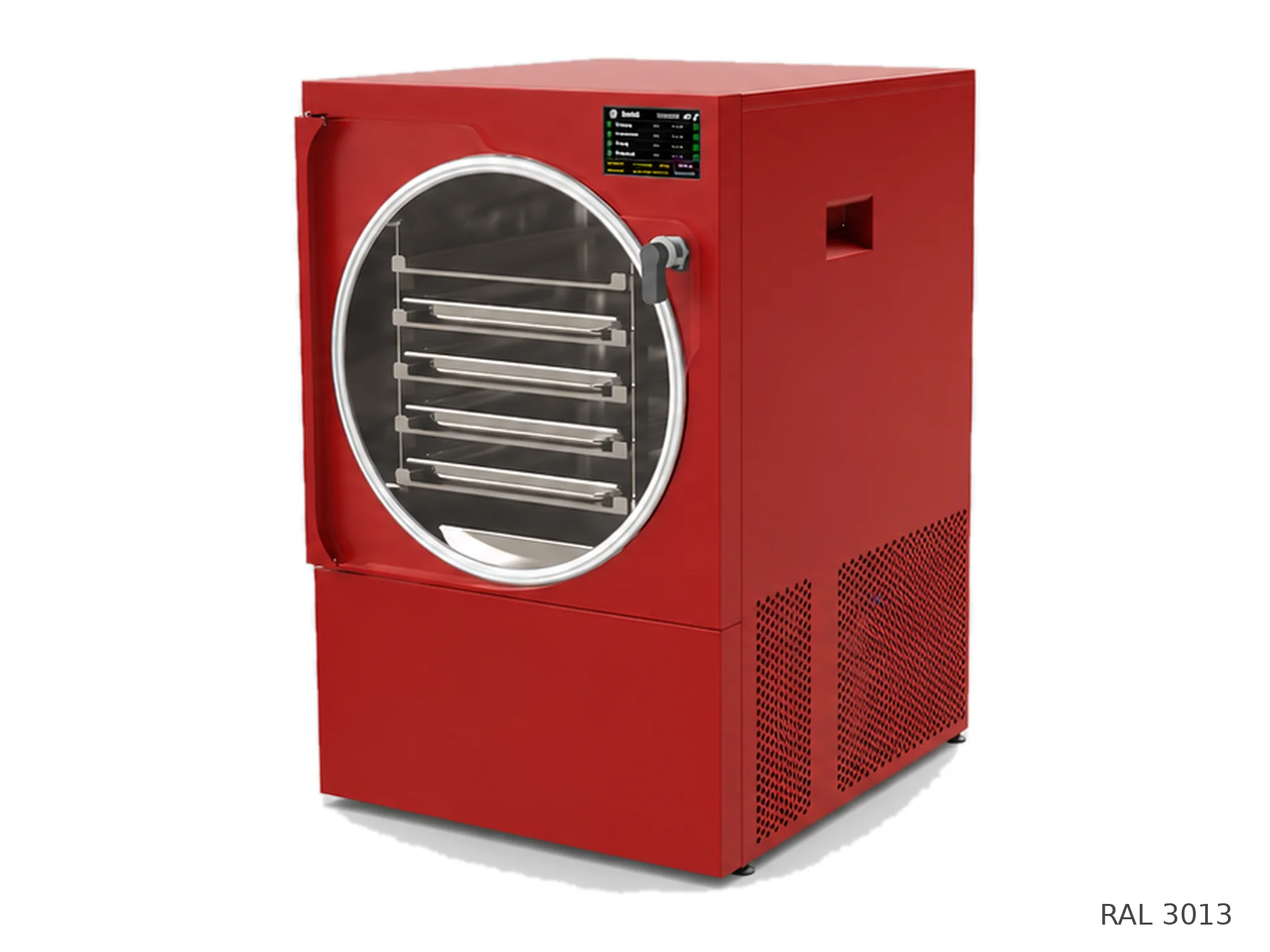

Jet Black, Traffic White, Stainless Steel, Other RAL
Defrosting
Automatic (≈3 h)
Control system
LCD touchscreen + Wi-Fi — menu in English
Data logging & recipes
Wi-Fi app monitoring
Remote monitoring
Yes
External dimensions (W × D × H)
500 × 650 × 770 mm
Net weight
87 kg
Power supply
220–240 V / 1~ / 50 Hz
Connected load
3.5 kW
Warranty
24 months (extendable to 36)
Energy consumption (avg)
0.9 kWh/h
Defrost time
3 h
Run the numbers
Produce from €73.45/kg on the LEO-004.
Indicative cost to produce one kilo of finished freeze-dried product. Adjust the inputs to your operation — every number recomputes live.
Cost to produce
€73.45/kg
indicative · Leosmak · incl. raw material, excl. labour
€34.56/kg machine cost · excludes raw material & labour
Payback
12 mo
on capex, gross margin
Revenue / yr
€10,368
~69 kg dried/yr
Full cycle
28h
drying + in-shelf freeze
In-shelf freezing — no external blast freezer, and a shorter cycle than in-chamber machines.
Excludes labour — cycles run largely unattended; hands-on handling is typically a few minutes per batch with trolleys/mechanisation. Add your own loaded rate if it’s material to your setup.
Yield and cycle-time figures are conservative engineering estimates based on typical product composition and verified machine specifications. Actual results depend on the specific material, recipe, preparation, load and ambient conditions, and may differ. These figures are for planning purposes only; Freeze-drying.tech accepts no responsibility for decisions made on their basis. Freeze-drying.tech can run a validation cycle of your product on the target machine to provide confirmed, measured yield and cycle-time figures.
Service & warranty
Backed after the sale.
Warranty
24 months
+12 months available
Support
Email and remote diagnostic support during business hours, with access to the spare-parts catalogue and the full documentation library. Extended and on-site service plans are available on request.
Installation & commissioning
Plug-and-run: delivered ready to operate on single-phase power. Remote onboarding and recipe-setup guidance are included; on-site commissioning is available on request.
Documentation
Manuals, datasheets & certificates.

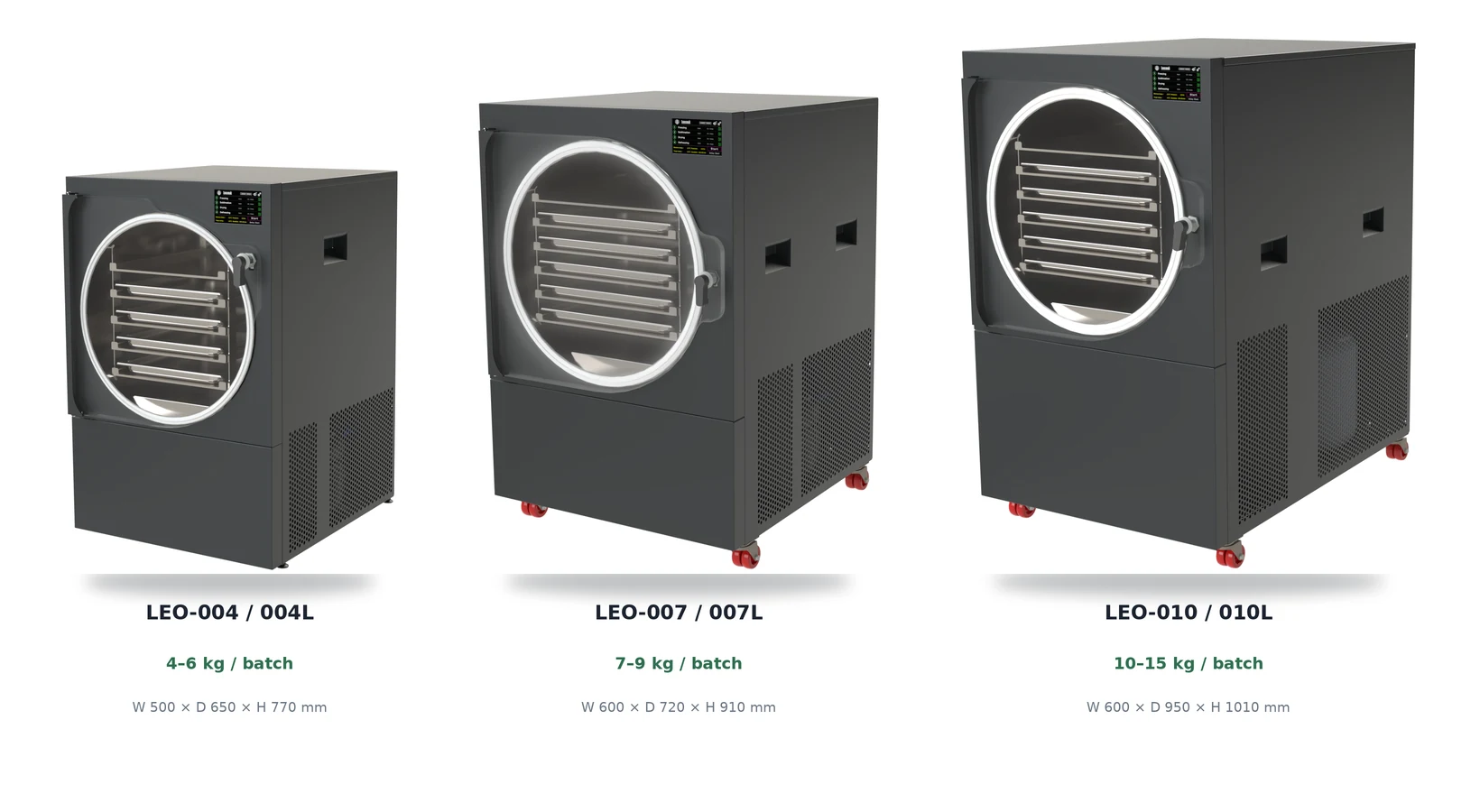

Range overview
How the range compares in size.
Drawn to scale by real external height. Standard and L models share the same external size — the L version adds shelves for higher capacity.
Accessories
Compatible accessories.
FAQ
Questions buyers ask.
The LEO-004 freeze-dries up to 4 kg of fresh product per cycle across 4 GN 1/2 stainless-steel trays (0.34 m² shelf area). It's aimed at households, restaurants and businesses prototyping recipes for larger machines. Expect a finished yield of roughly 10–20% of the fresh weight for high-moisture foods, with cycles typically running 24–40 h depending on product and thickness. Note the compact LEO series uses an automatic defrost that takes about 3 hours between batches, so build that into your turnaround planning.
Yes — Wi-Fi remote monitoring is built in. The LCD touchscreen is paired with Wi-Fi, so you can monitor the running cycle and machine status from a phone app. For a small operator that means you don't have to babysit a 30-hour run on site; you can check progress and get status remotely.
A 24-month warranty as standard, extendable to 36 months — longer than the 12-month cover that is typical in the compact class. Combined with the stainless construction and Wi-Fi diagnostics, it's built to lower the risk of buying your first or second machine.

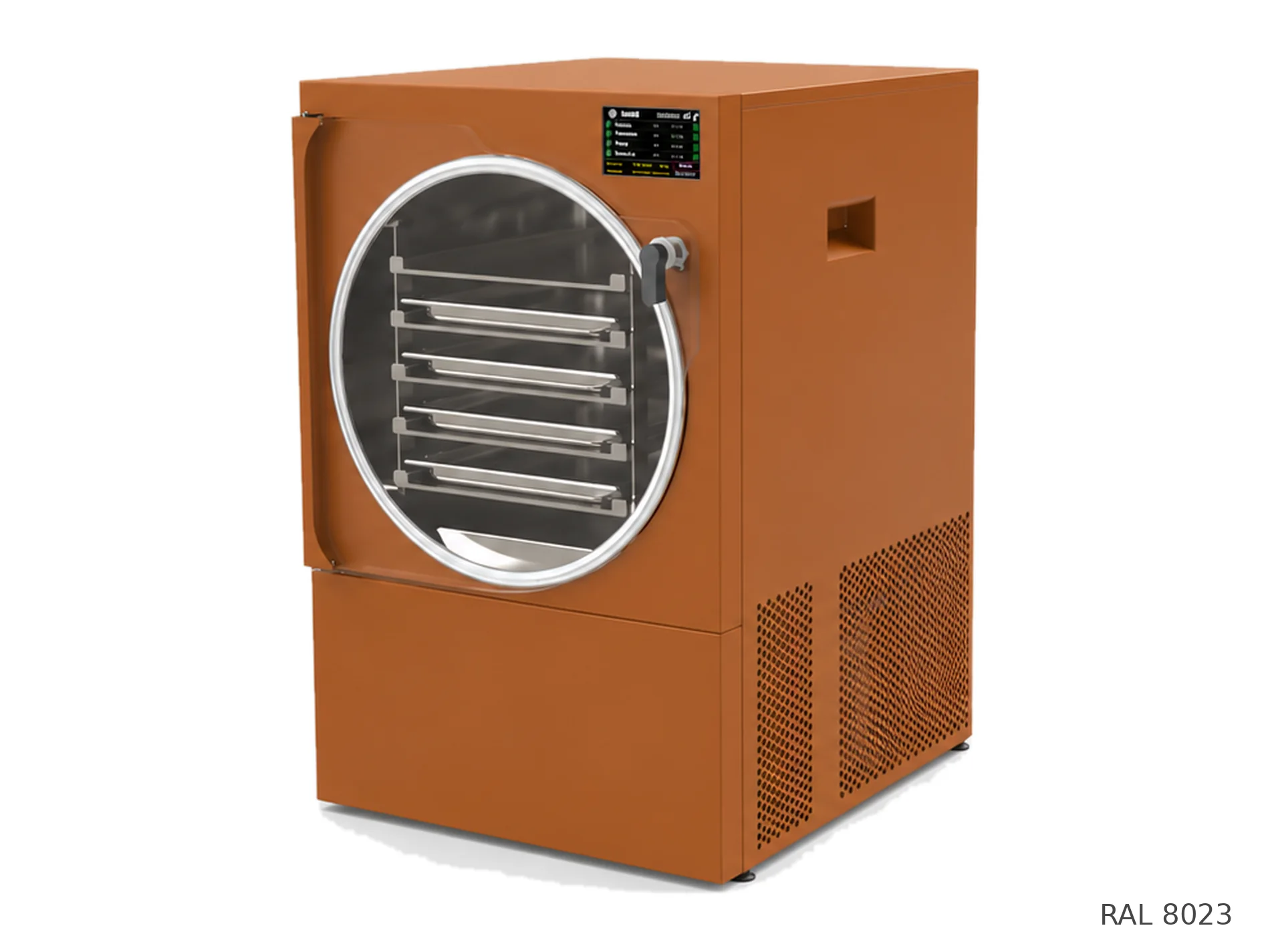

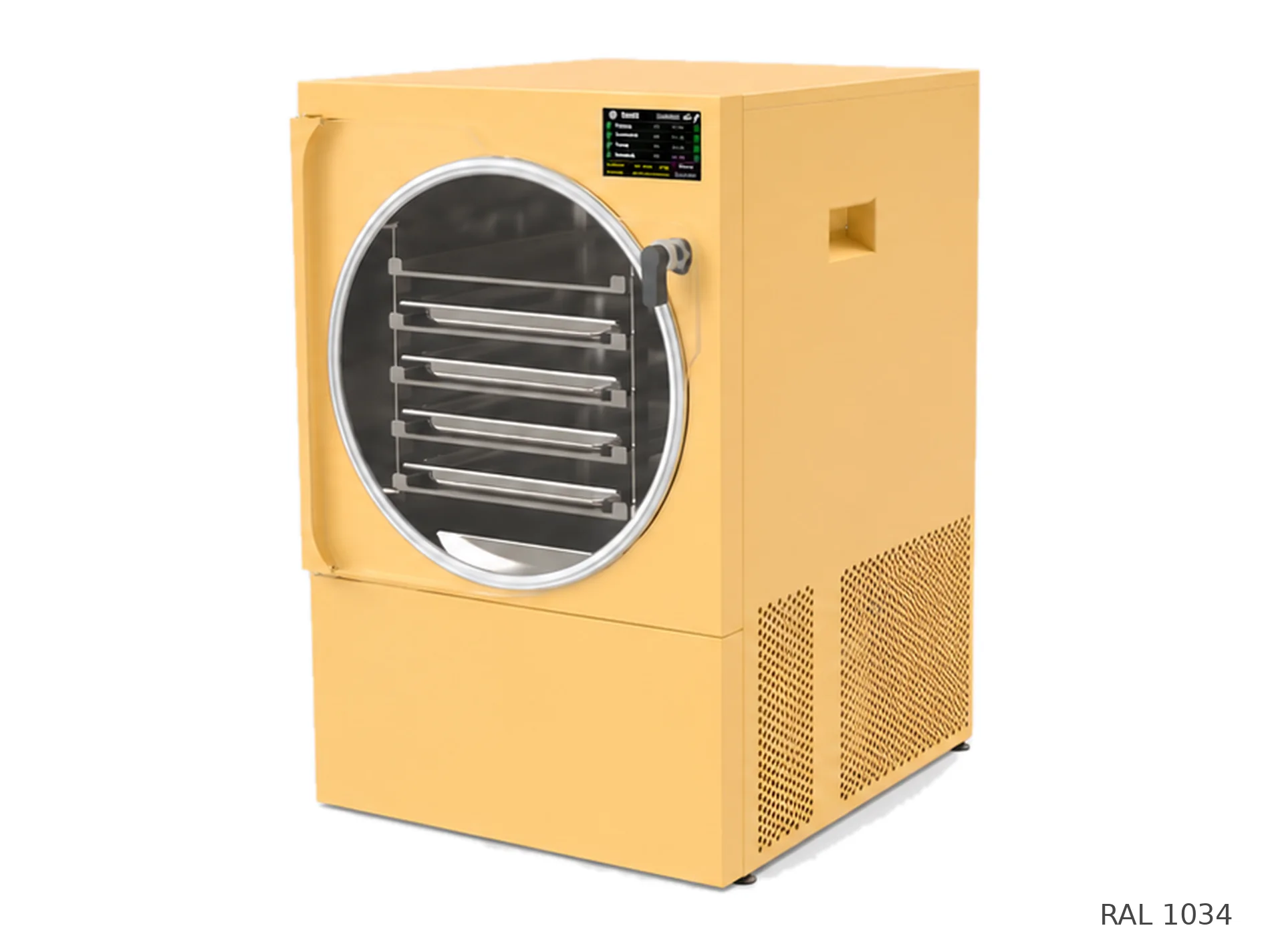

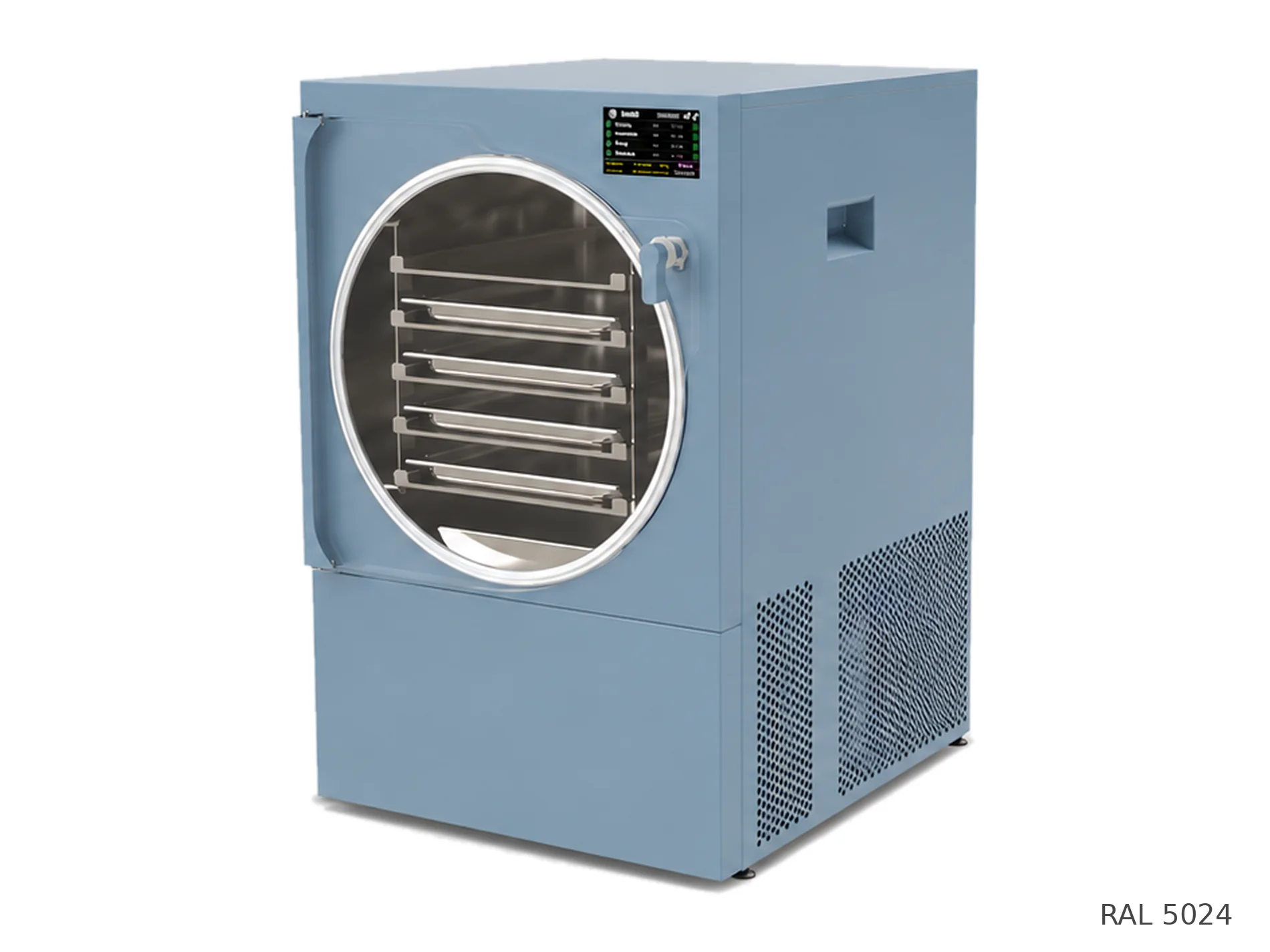

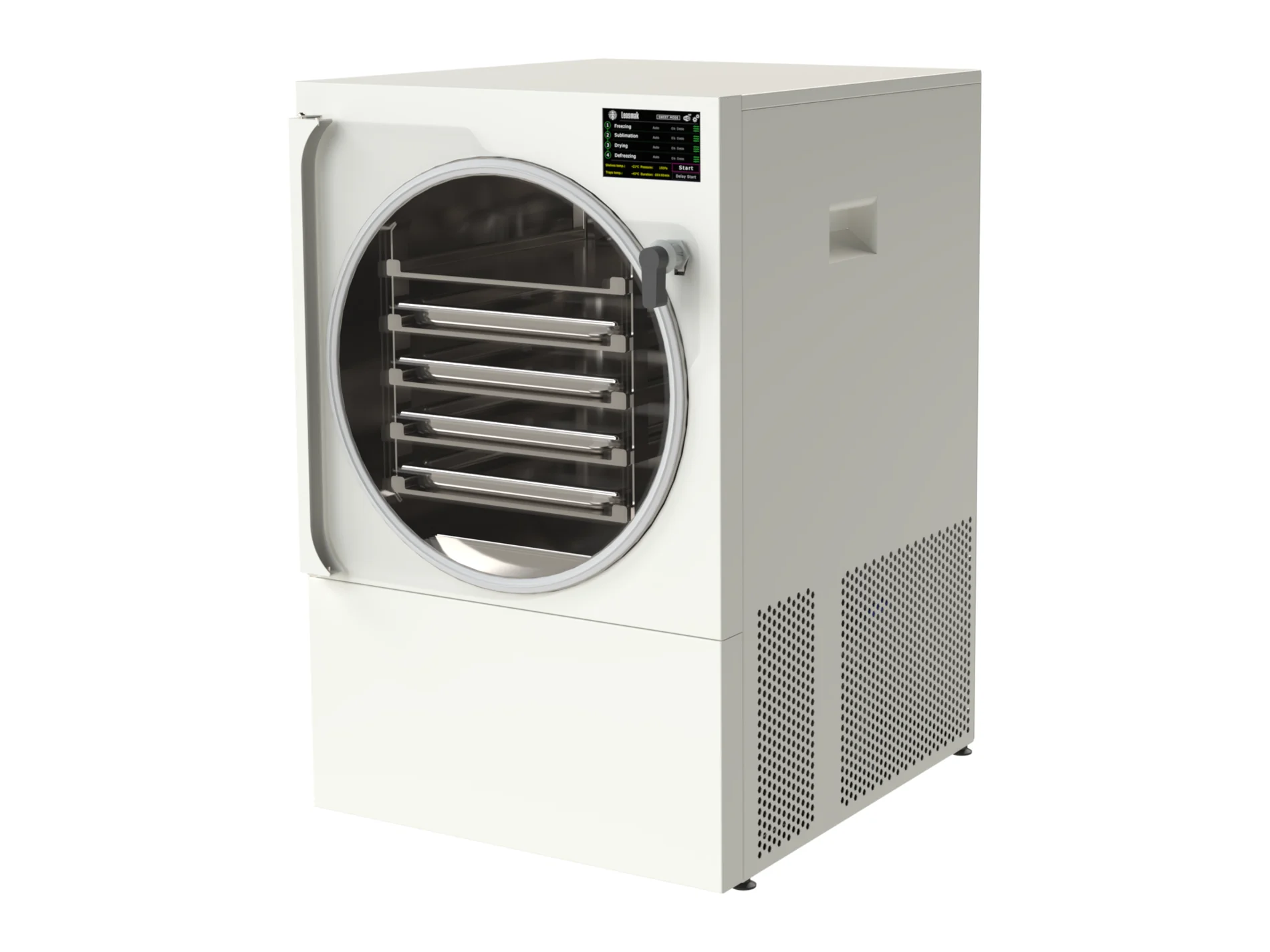

Yes — body colour options include Jet Black, Traffic White, Stainless Steel and other RAL colours to order. That matters for front-of-house HoReCa installs, showrooms and brand-conscious producers where the machine is on display, not hidden in a back room.
It runs on a standard single-phase 220–240 V / 50 Hz supply (no three-phase needed) and is air-cooled, so no external chiller is required. It ships with an oil-sealed pump as standard, with an oil-free option if you want to remove oil-handling and maintenance — useful for clean-label food or daily production use.
Yes. With shelves running −40 to +70 °C and automatic defrost, it processes fruit, vegetables, meat, ready meals, liquids and purées. For liquids and powders, pair it with a silicone mat (stocked accessory) to stop drip-through and make unloading clean; deeper GN trays add volume per shelf.
