Up to 50 kg suggested load · 16 trays · 4.66 m² shelf area. Compact tray freeze dryer with a stainless vacuum chamber, two-stage oil pump, thermal-matrix heating and touchscreen control. Value-tier workhorse for established food producers scaling freeze-dried ranges. CE, 12-month warranty.

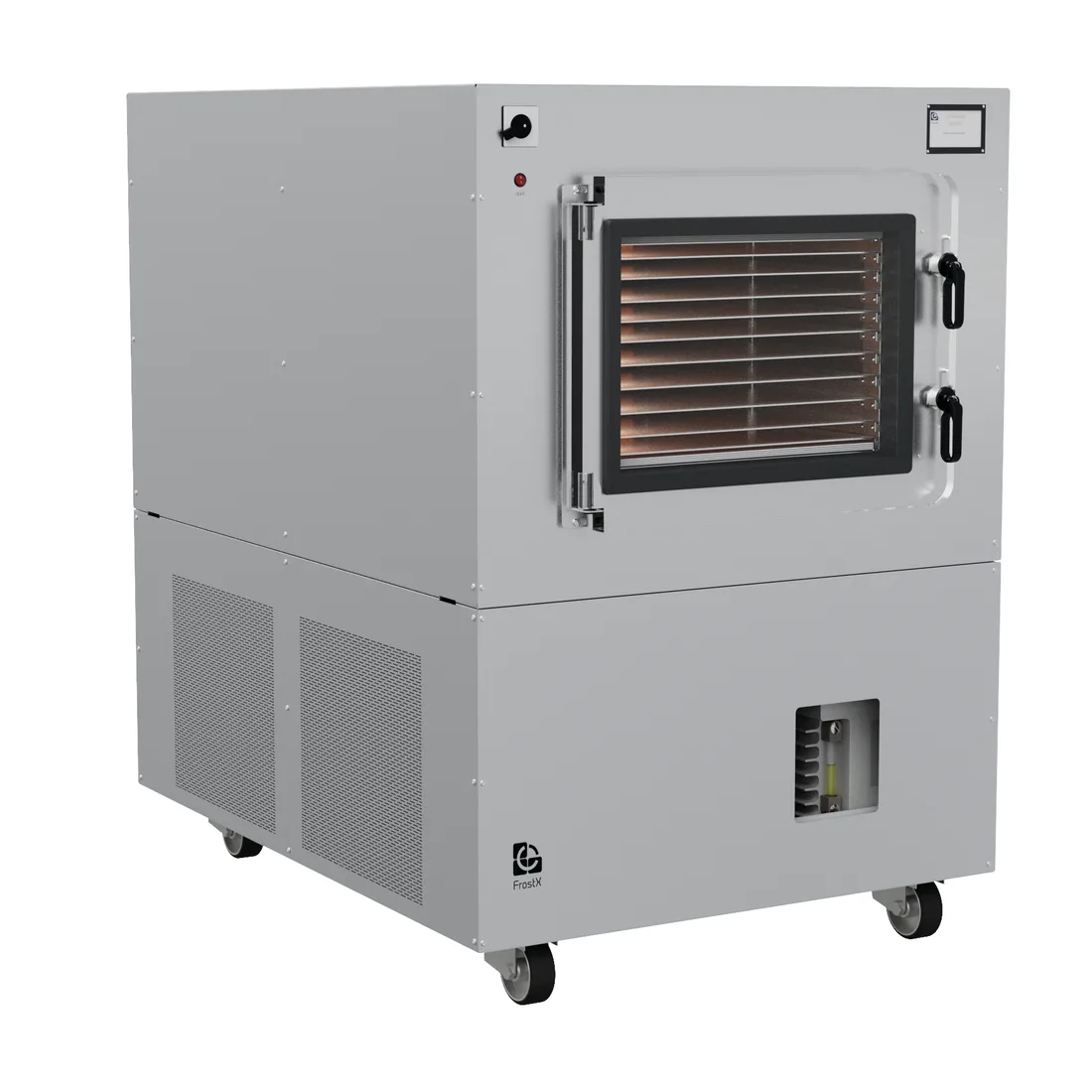

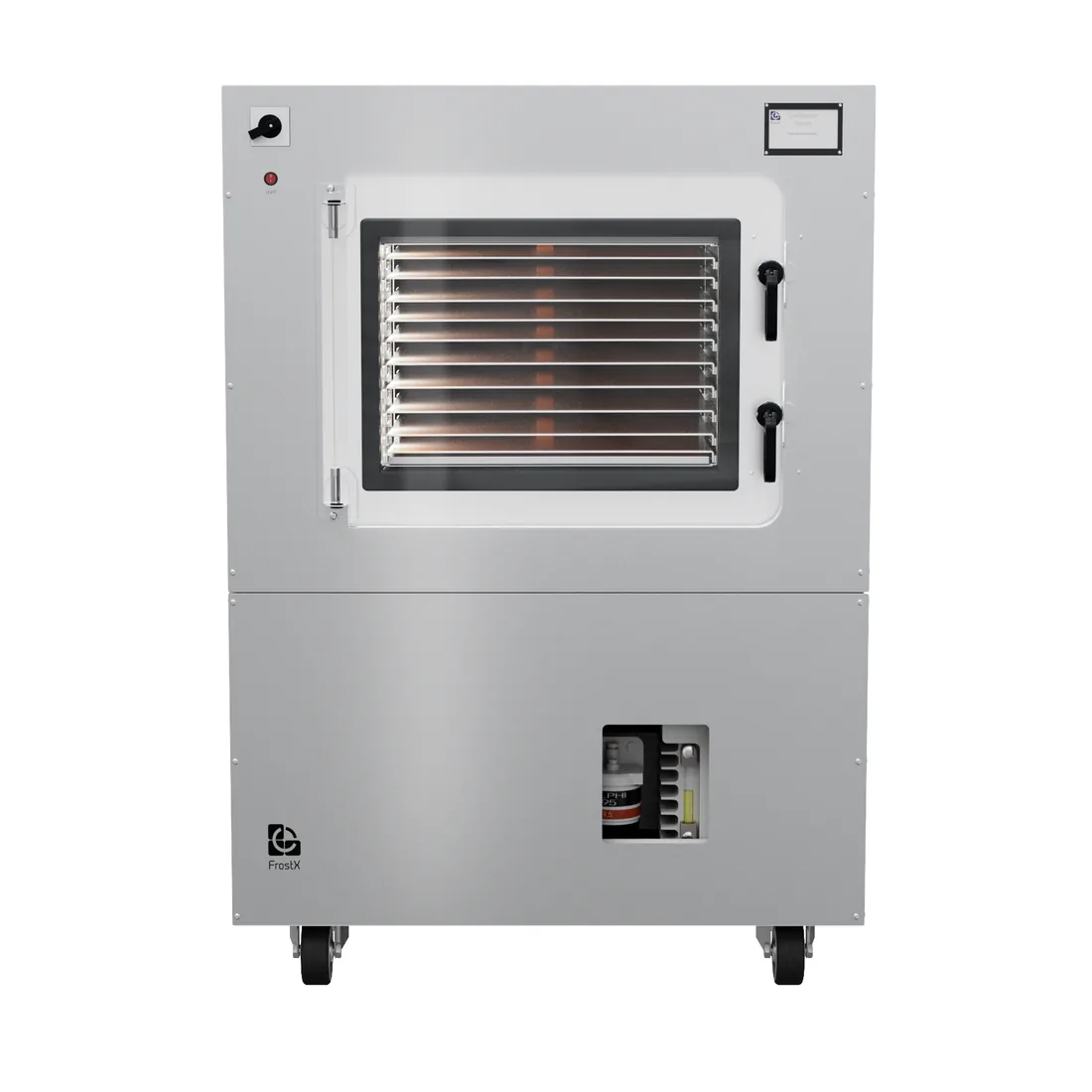

The FrostX 50 is a fully self-contained tray freeze dryer with a suggested maximal load of 50 kg — part of FrostX's L-series (large, three-phase). Built for food manufacturers already trading freeze-dried products who want to expand range and output. Three-phase (400 V) industrial unit.
Deep-vacuum performance — the largest FrostX — commercial-scale deep-vacuum capability in a robust tray machine.
Up to 50 kg suggested load — 16 trays, 4.66 m² shelf area.
Rectangular chamber — more shelf per volume — a rectangular stainless chamber, uncommon at this size. Flat walls take full-width trays with no curved dead space, so more shelf area fits in the same chamber volume — more product per cycle.
Deep vacuum, even drying — two-stage vacuum pump with oil-mist separator, thermal-matrix heating shelves, refrigeration rated for continuous operation.
See it run
The cycle, start to finish
Loading, touchscreen setup, the automated run and packing the finished product, filmed on a FrostX machine. The same cycle runs across the range.
Selling price for this product group isn't published yet. Enter your own above to see revenue & payback.
Excludes labour: cycles run largely unattended; hands-on handling is typically a few minutes per batch with trolleys/mechanisation. Add your own loaded rate if it’s material to your setup.
Yield and cycle-time figures are conservative engineering estimates based on typical product composition and verified machine specifications. Actual results depend on the specific material, recipe, preparation, load and ambient conditions, and may differ. These figures are for planning purposes only; Freeze-drying.tech accepts no responsibility for decisions made on their basis. Freeze-drying.tech can run a validation cycle of your product on the target machine to provide confirmed, measured yield and cycle-time figures.
Service & warranty
Backed after the sale.
Warranty
12 months
Support
Email and remote diagnostic support during business hours, with access to the spare-parts catalogue and the full documentation library. Extended and on-site service plans are available on request.
Installation & commissioning
Delivered ready to commission on a three-phase supply. Remote onboarding and recipe-setup guidance are included; on-site commissioning is available on request.
The FrostX 50 is a value-tier tray freeze dryer with a stainless vacuum chamber aimed at established food producers scaling a freeze-dried range. It takes up to 50 kg of fresh product per cycle across 16 trays (4.66 m² working area). FrostX rates the ice condenser at 50 kg, the same as the suggested batch load, and states there is no standardised method for measuring it, so size by the batch load. For high-moisture produce expect roughly 10–20% of the fresh weight as finished product.
It's a practical design point worth understanding. Most freeze dryers use a round (cylindrical) vacuum chamber because it's cheaper to build for vacuum, but curved walls waste space around flat, square trays. FrostX uses an efficient rectangular, cuboidal chamber, so the GN-style trays fill almost the entire internal volume. For the same external footprint you get a larger usable working area and even shelf spacing top-to-bottom — on the FrostX 50, 4.66 m² of shelf across 16 full-width trays. The net effect is more usable shelf area per footprint, which matters most if you're constrained on floor space, and is neutral if you're not.
It needs a three-phase 400 V supply, which is standard for its capacity. Plan the three-phase connection into your production space; the unit is mobile on wheels once connected.
A two-stage oil-sealed vacuum pump with an oil-mist separator (internally mounted), plus a continuous-duty refrigeration system using a natural refrigerant with a very low global-warming potential (GWP ≈ 3). A rapid chamber-defrost system is standard on this model. Maintenance is straightforward: periodic pump-oil changes (oil stocked as an accessory) and keeping the mist separator clean for full vacuum.
A cycle pre-freezes product to about −40 °C, pulls chamber pressure down to roughly 50 Pa, then sublimates the ice off under gentle shelf heat, finishing at around 1–2% residual moisture (lower for some products), the range needed for crisp texture and long ambient shelf life without preservatives. Total time is typically 24–40 h depending on product, load and slice thickness. For best colour and structure, pre-freeze product hard before loading. A blast freezer helps.
Every FrostX is CE-certified and carries a 12-month warranty — the standard across most of the market. If longer cover is decisive, only the Leosmak range offers 24 months (extendable to 36); FrostX competes instead on its rectangular-chamber working area, low-GWP refrigerant and value pricing. We'll help you weigh the trade-off against your volumes.
