Capacity
600 kg/batch
Overview

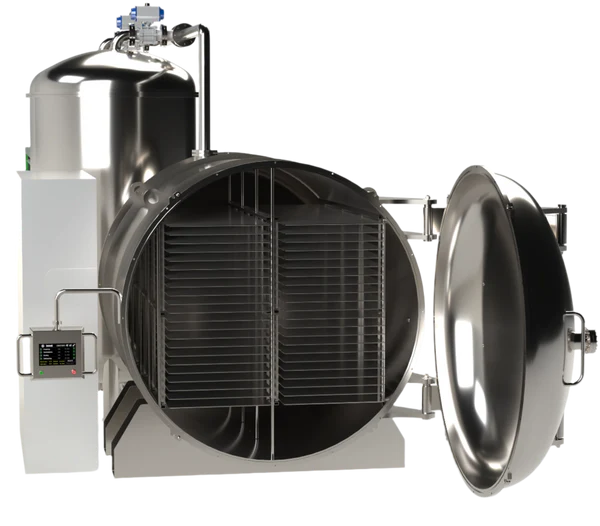

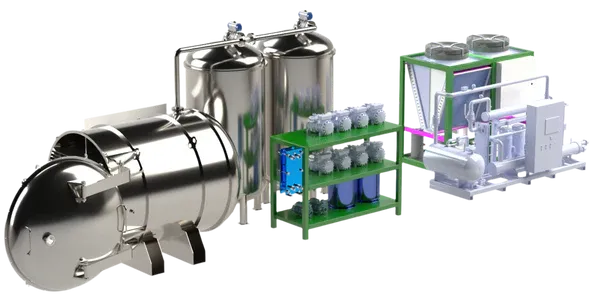

About the LEO-600
The LEO-600 is a high-capacity, industrial-grade freeze dryer designed for large-scale food production, with a batch capacity of up to 600 kg. This machine is delivered as a customized project, with full-service support from planning to installation and commissioning. Availability (EXW, Incoterms 2021): Up to 140 working days from placement of the order.
Highest-volume industrial operations — the largest LEO, supplied as a project.
Up to 600 kg per batch — 22 shelves, 176 trays, 61.49 m² of shelf area.
Configured around your line — designed and delivered to your production needs, and recipes proven on smaller LEO machines carry over.
Heavy-duty and automated — industrial construction for long service life, with automatic controls that keep manual work to a minimum.
Key features & benefits
Hygienic & Industrial-Grade Design
- 100% Stainless Steel Chamber & Shelves — Fully washable and corrosion-resistant, meeting the highest hygiene standards.
- No Electrical Components Inside — Ensures safe, efficient, and easy cleaning with high-pressure washing.
Tailored Project-Based Delivery
- Customizable Setup — Each machine is built and configured according to your production requirements.
- Comprehensive Support — We provide consultation, delivery, installation, and operational training.
- End-to-End Project Management — Our experienced team oversees the entire process for a seamless implementation.
Advanced Freeze-Drying Technology
- Radiant Freezing & Heating Shelves — Rapid, even drying with precision temperature control.
- 50 mm Shelf Clearance — Accommodates GN 2/1 trays with depths of 20 or 40 mm for versatile production.
- "Sweet Mode" — Tailored cycle for sweets and candies with preheating up to +70°C.
Remote Monitoring & Control
- Wi-Fi Connectivity — Monitor and control the dryer remotely via the mobile app.
- Remote Firmware Updates — Automatic system updates for ongoing performance improvements.
- Lifetime Monitoring Module — Enables continuous tracking of machine performance and system health.
Energy Efficiency & Sustainability
- Eco-Friendly Refrigerants — Utilizes low Global Warming Potential (GWP) refrigerants for reduced environmental impact.
- Optimized Energy Consumption — Advanced system design minimizes power use while maximizing performance.
Built for Industrial Reliability
- Advanced Vacuum Oil Protection Technology — Extends oil life and significantly reduces the need for frequent oil changes in the vacuum pump.
- Short Power Loss Protection — Automatic system recovery after short outages to protect batches.
- Low Noise (~65 dB) — Quiet performance even during intensive, high-load operation.
Specifications
Engineering data, in plain text.
Batch capacity
600 kg
Ice condenser capacity
900 kg
Total shelf area
61.49 m²
Shelf size
2 × 650 × 2150 mm
Shelf spacing
50 mm
Heated shelves
22
Product trays
176
Tray size
GN 2/1, 2–4 cm
Shelf temperature range
-35 to +70 °C
Min. condenser temperature
-45 °C
Vacuum pump type
Oil-free dry screw pump (standard)
Defrosting
Automatic, Fast Defreeze (standard)
Control system
LCD touchscreen + Wi-Fi — menu in English
Data logging & recipes
Cloud admin panel: full cycle history, charts and data export · Wi-Fi app monitoring and notifications
Remote monitoring
Yes
Refrigeration
Air-cooled
Chamber / shelf material
AISI 304 stainless steel
Observation
Observation window
Loading
Cart, rail or robocart
External dimensions
2,000 × 3,000 × 2,200 mm
Net weight
7,400 kg
Max. noise level
65 dB(A) max. (DIN 45635)
IP protection
IP65 (DIN 60529)
Connected load
95 kW
Nominal power
80 kW
Energy consumption
13 kWh/h
Warranty
24 months (+12 extendable)
Refrigerant
R-448A
Shelf material
Stainless steel
Body color options
Stainless steel
Power supply
400 V / 3~ / 50 Hz
Defrost time
Configuration-dependent; dual ice-trap chamber available for continuous operation
Run the numbers
Industrial line: a measured ROI, configured to your product
The LEO-600 is configured to your material, site and throughput, so a generic on-page calculator would mislead. Send us your product and target volume and we’ll return a measured cost-per-kg and payback analysis within 2 working days.
Request a configured ROI analysis →Yield and cycle-time figures are conservative engineering estimates based on typical product composition and verified machine specifications. Actual results depend on the specific material, recipe, preparation, load and ambient conditions, and may differ. These figures are for planning purposes only; Freeze-drying.tech accepts no responsibility for decisions made on their basis. Freeze-drying.tech can run a validation cycle of your product on the target machine to provide confirmed, measured yield and cycle-time figures.
Service & warranty
Backed after the sale.
Warranty
24 months
+12 months available
Support
Email and remote diagnostic support during business hours, with access to the spare-parts catalogue and the full documentation library. Extended and on-site service plans are available on request.
Installation & commissioning
Delivered ready to commission on a three-phase supply. Remote onboarding and recipe-setup guidance are included; on-site commissioning is available on request.
Accessories
Compatible accessories.
FAQ
Questions buyers ask.
At industrial scale the LEO-600 is delivered as a tailored project, not an off-the-shelf SKU. Final price depends on configuration, utilities, installation, commissioning and service scope — so it's quoted per project. Tell us your target product, daily output and site and we'll build a costed proposal.
Up to 600 kg of fresh product per batch — 61.49 m² of shelf area across 176 GN 2/1 trays, with a 900 kg ice-condenser. This is high-volume production for food, nutraceutical and ingredient manufacturers running continuous freeze-dried output, not pilot or small-batch work.

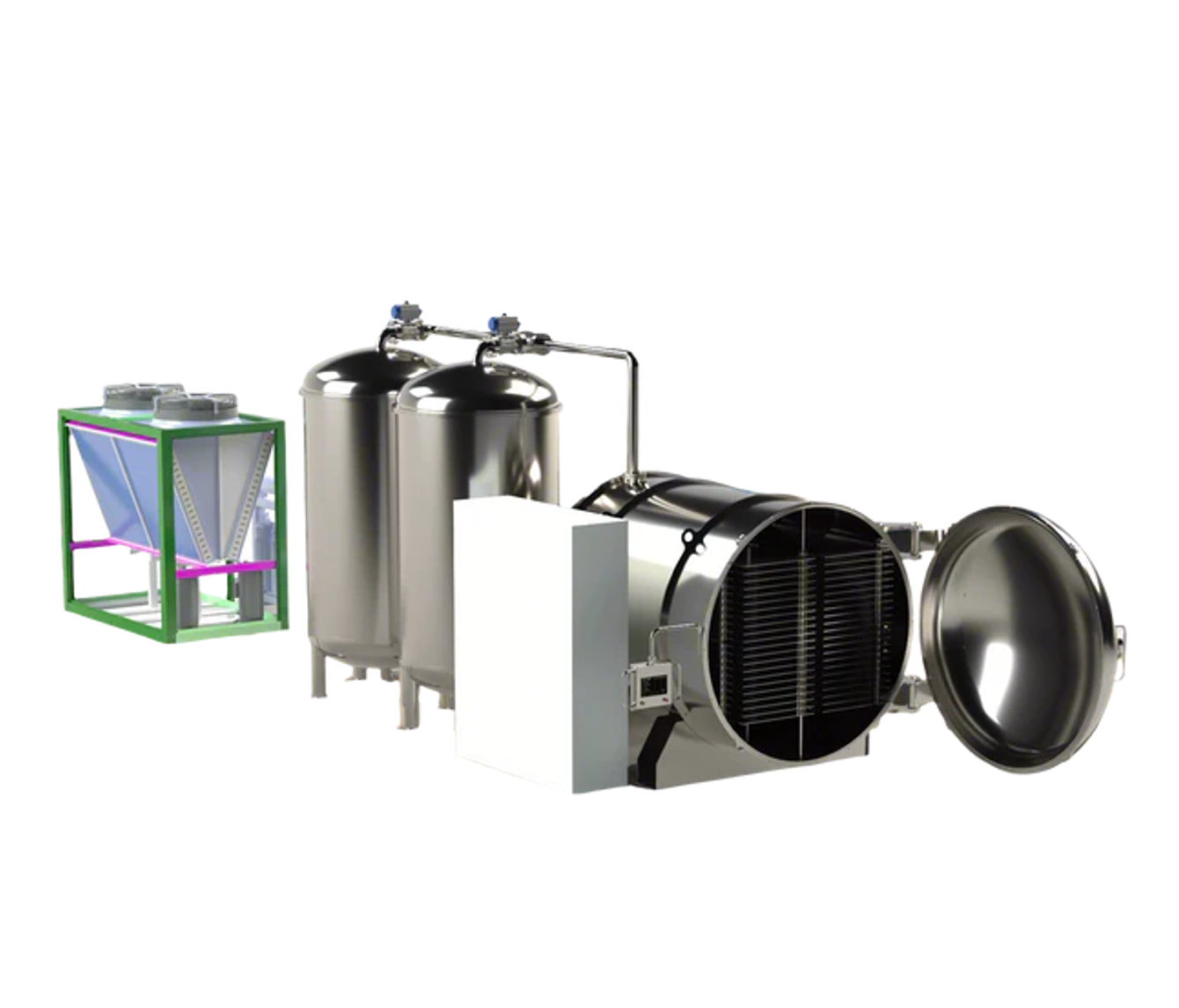

Plan for a 3 × 400 V supply (≈95 kW connected, 80 kW nominal), an installed weight around 7 400 kg plus a separate Main Cooling Unit (2000 × 2000 × 2200 mm), and the floor area, access and ventilation that implies. It's air-cooled. We provide a full site-readiness and utilities checklist as part of the project, before anything ships. The room should stay between +10 and +30 °C, with at least 1 m of clearance around ventilation and service access and a drain sized for the full ice load. Industrial units need one service inspection per year.
Oil-free vacuum is standard on this industrial class. That removes oil changes and any oil-migration risk from a continuous, food-grade production environment — the right default at this scale despite the higher pump cost.
As a full-service project: specification, build, delivery, installation, commissioning and operator handover, with 24-month warranty (extendable to 36) and Wi-Fi remote diagnostics. Lead times are project-dependent and confirmed in the proposal — engage us early so capacity lands when you need it.
Established producers industrialising a proven product — premium freeze-dried foods, ingredients, nutraceuticals or pet nutrition — who have outgrown batch machines and need predictable, validated, high-volume capacity. If you're still proving the product, we'll usually steer you to a commercial-class machine first and scale you up to this later.
Next step
Talk to an engineer, not a salesperson.
Tell us your product and your volumes. We'll size the machine, sanity-check the numbers against yours, and send a written quote, usually within one business day.
